10x16 M House Design Plan with 4 Bedrooms 33x53 Feet PDF Plans
10x16 M House Design Plan with 3 Bedrooms + Stuff room 3d PDF Full Plans 33x53 Feet. This house is perfect for big land size.
10x16 M House Design Ground Floor Plans Has:
Firstly, 2 car Parking is at the left side of the house. A nice Terrace entrance at the right side of the house. When we are going from front door, a nice Living with kitchen and dining table is very perfect for this house it is nice and modern. Office 4.5x4.3 meter with beautiful terrace garden. A multi Bathroom size 1.8x2.1 meters, stuff room 2x2 meters. Storage is under the stair. pantry 1.8x1.8 meter. Swimming pool.
At first floor, big hall, Master Bedroom size is 4.5x4.3 meters, it have a big glass sliding door to balcony with a queen size bed and walk in closet. Bedroom 2 size 3.4x5 meter, Bathroom 2.9x1.8 meters. Bedroom 3 size 4.5x4.3 meter with big balcony. Multi Bathroom 1.8x3.5 meters
House Short Description:
-2 Cars Parking, swimming pool
-Living room, Office
-3 Bedrooms, 4 bathrooms, Stuff room
Exterior 10x16 M House Design Plan:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
The Roof Tile:
Finally, The terrace roof type is made from Cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.
Delivery Instant Download
Included Autocad and Sketchup Files

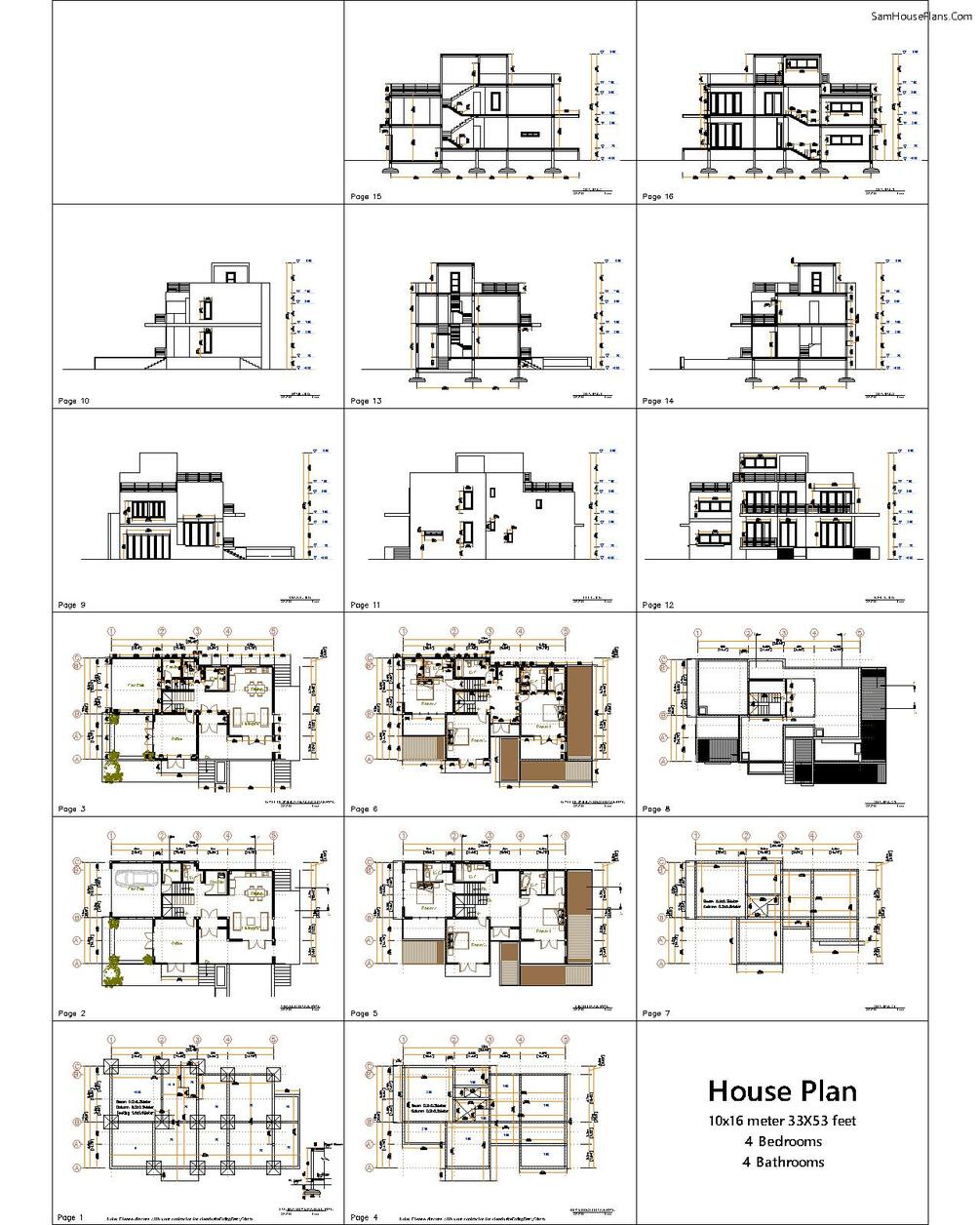

Footing, Beam, Column Location plan PDF plan
Exterior / Interior wall Dimension Plan PDF plan
Roof Beam Plan PDF plan
Roof Plan PDF plan
Elevations plans PDF plan
4 Cross Section plans PDF plan
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I'm unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Your files will be available to download once payment is confirmed.
I don't accept returns, exchanges, or cancellations. But please contact me if you have any
problems with your order.
YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN
You'll get Full PDF Plans, AutoCad, and Sketcup files.
