11x15 Meter House Design Plan 5 Bedrooms 36x49 Feet PDF Plans

House Design Plan 11x15 Meter 5 Bedrooms 36x49 Feet 3d PDF Full Plans. This house is perfect for medium land size 15x20 Meter.

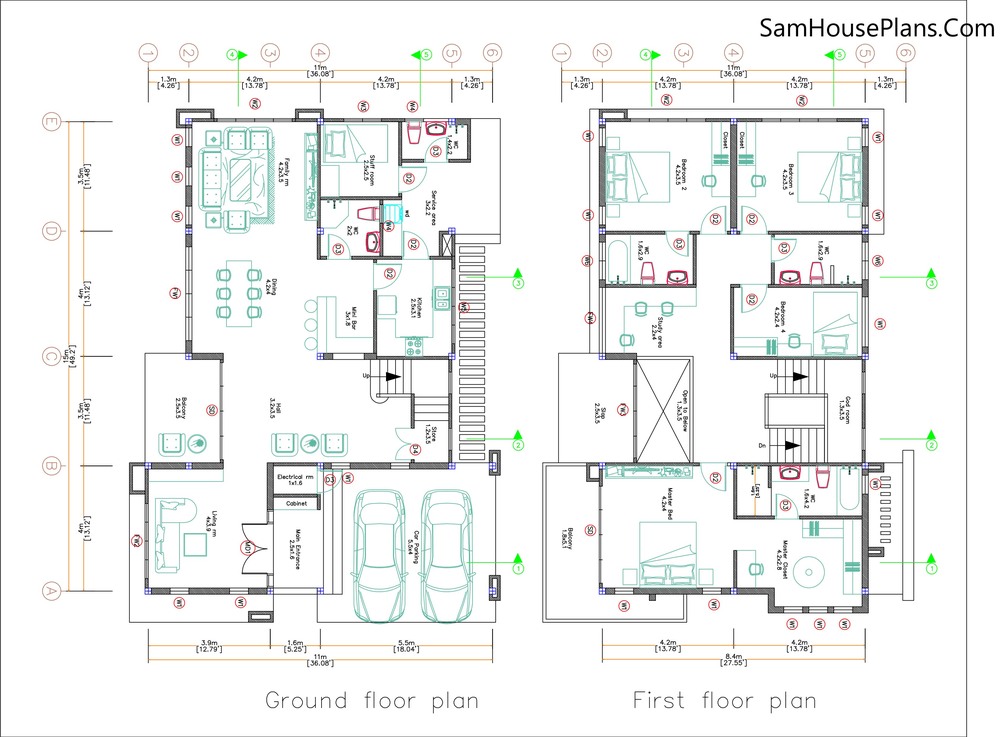

10x16 M House Design Ground Floor Plans Has:

Firstly,  2 cars Parking is at the right side of the house 5.5x4 meter. A nice Terrace entrance in front of the house 1.6x2.5 meter. When we are going from front door, a Living 3x3.9 meter is very perfect for this house it is nice and modern. Big nice hall 3.2x3.5 meter with balcony 2.5x3.5 meter. Dining area 4.2x4 meter, mini bar 3x1.8 meter. Family room 4.2x3.5 meter. Brightly Kitchen 2.5x3.1 meter, it is clean and beautiful. A multi Bathroom size 2x2 meters. Washing machine is at service area 3x2.2 meter. Storage is under the stair. Stuff room 2.5x2.5 meter, out door bathroom 1.4x2.2 meter. Electrical room 1x1.6 meter.

At first floor, big hall have an open view to ground floor, Study area 2.2x4 meter, god room above the stair. Master Bedroom size is 4.2x4 meters, it have a big glass sliding door to balcony 1.8x5.1 meter with a king size bed, Makeup desk and walk in closet 4.2x2.8 meter, bathroom 1.6x4.2 meters. Bedroom 2 size 4.2x3.5 meter, with Bathroom 1.6x2.9 meters. Bedroom 3 size 4.2x3.5 meter, Bedroom 4 size 4.2x2.4 meter, multi Bathroom 1.6x2.9 meters.


House Short Description:

-2 Cars Parking

-Living room, big hall with balcony

-Dining room, mini bar

-Kitchen

-4 Bedrooms, 5 bathrooms, Stuff room

-Storage

-washing room

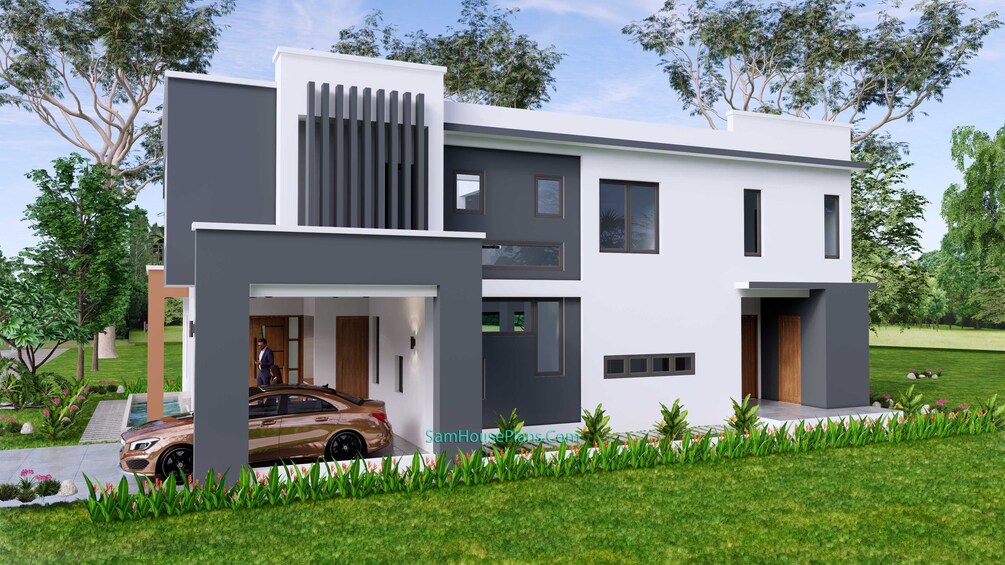

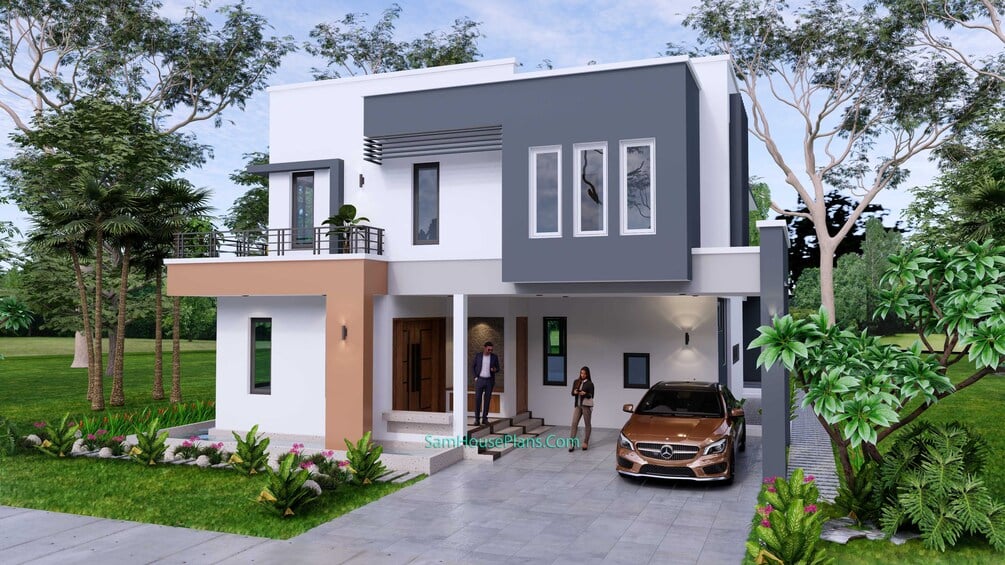

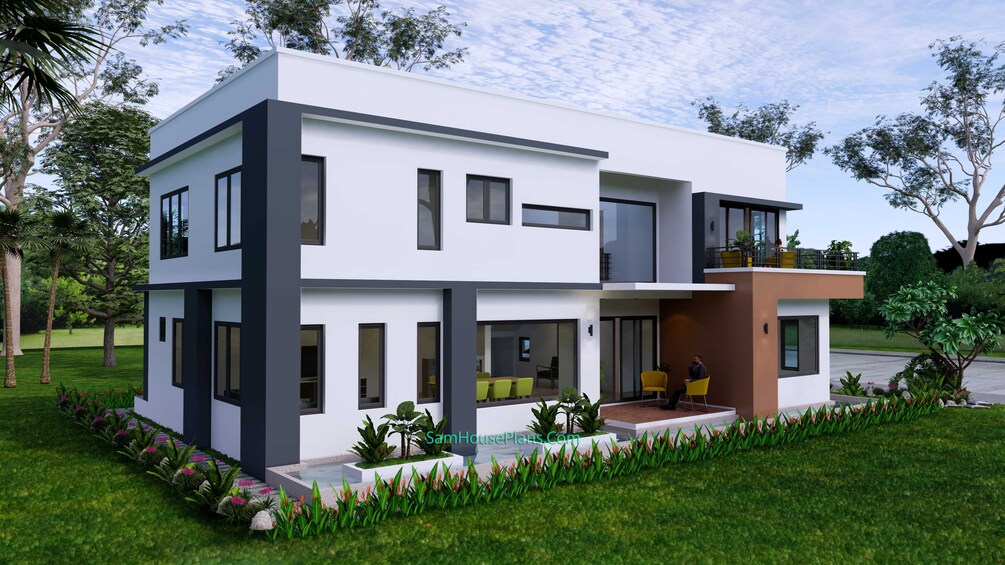

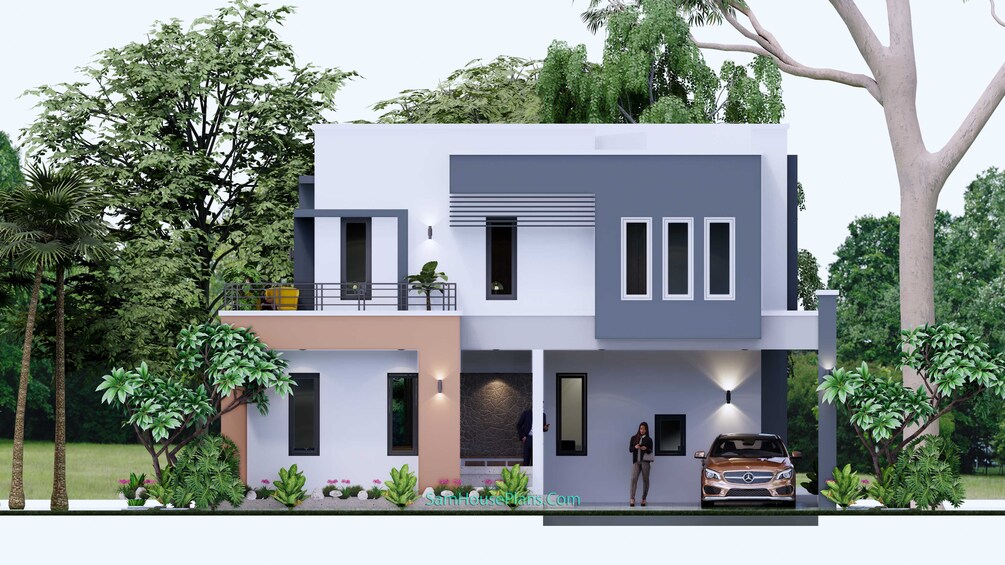

Exterior 10x16 M House Design Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.


The Roof Tile:

Finally, The terrace roof type is made from Cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

Included Autocad and Sketchup Files

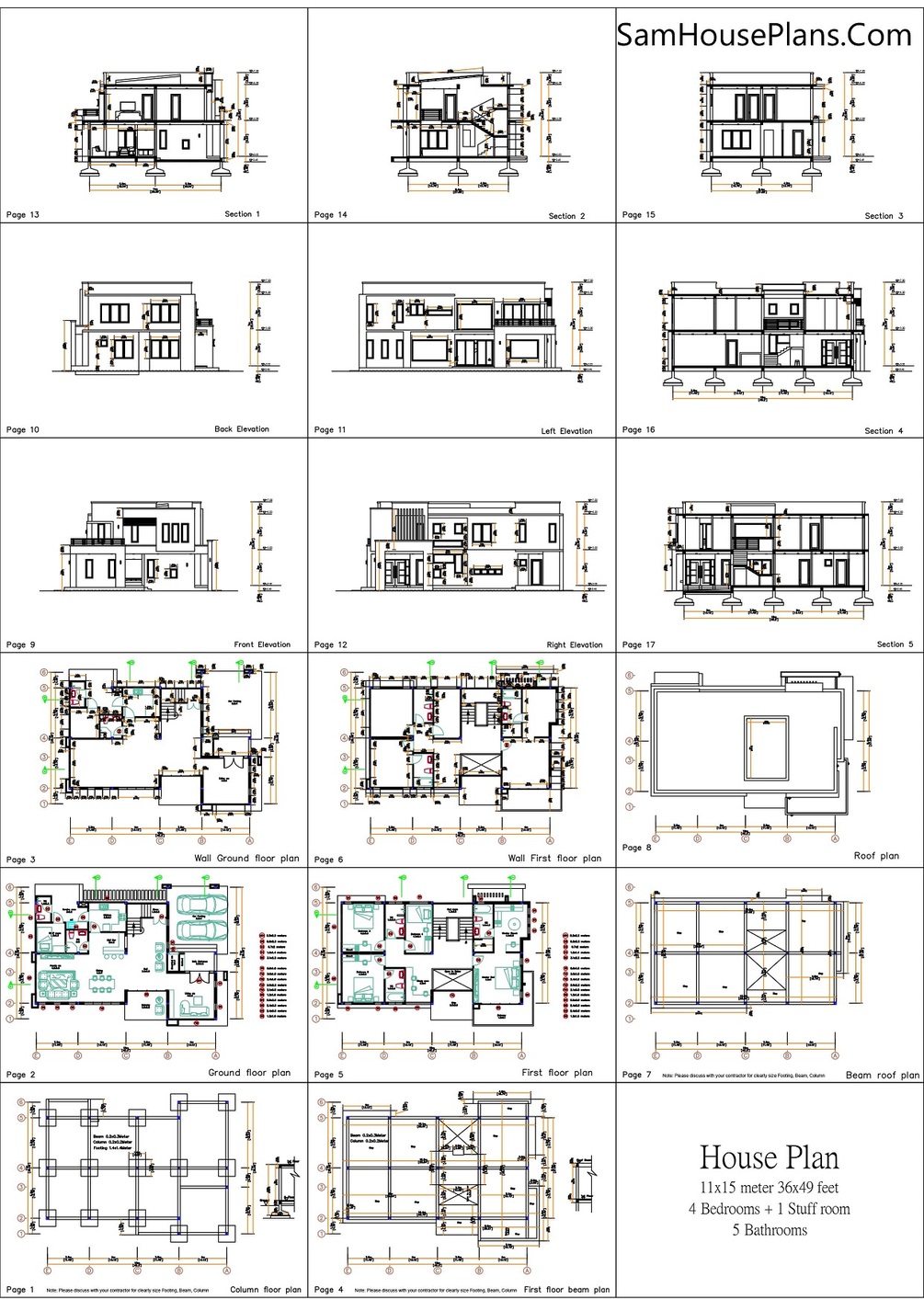

PLANS INCLUDE:

Footing, Beam, Column Location plan PDF plan

Exterior / Interior wall Dimension Plan PDF plan

Roof Beam Plan PDF plan

Roof Plan PDF plan

Elevations plans PDF plan

5 Cross Section plans PDF plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any

problems with your order.


YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN


1 rating

  • You'll get Full PDF Plans, AutoCad, and Sketcup files.
  • Select $39 to get full plans39
