23x23 Feet Tiny House 7x7 Meters 2 Bedrooms PDF Plans

0 ratings

23x23 Feet Tiny House 7x7 Meters 2 Bedrooms PDF Plans. House Plan with 49 sqm floor area PDF Plans. This house is perfect for small land size.

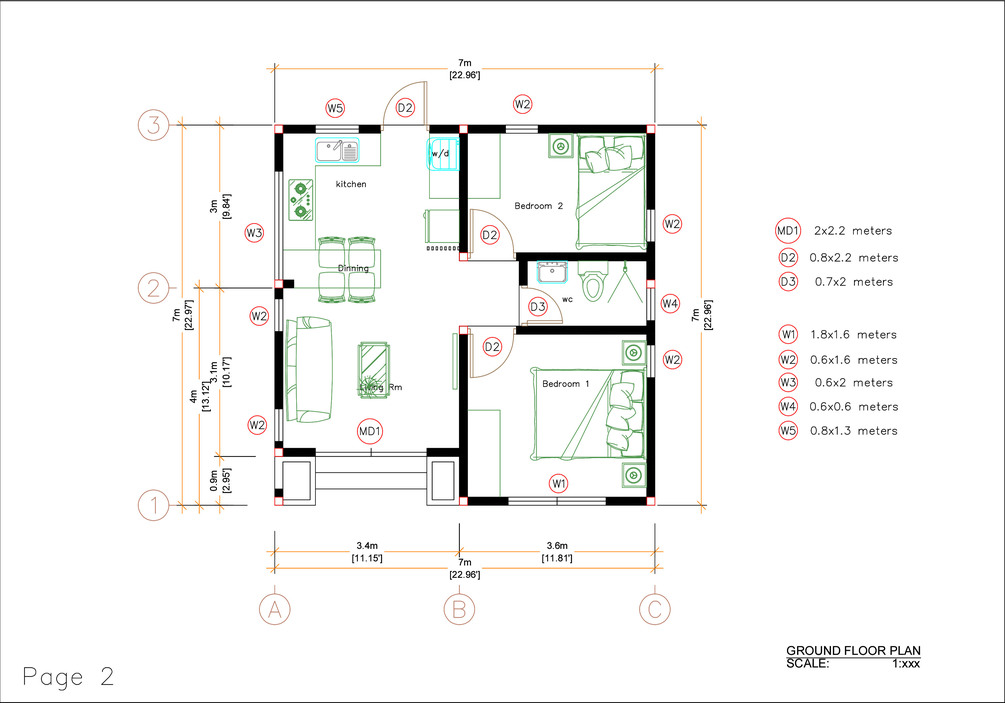

23x23 Feet Tiny House Floor Plans Has:

Firstly, the Parking outside of the house. Terrace entrance is in front of the house 0.90 x 3.40 meters. When we are going through a big glass sliding door, a small Living area 2.95 x 3.25 meter is very perfect for this small house it is nice and modern. After that is a Dinning Table that supported 4 People in this family. A multi Bathroom size 2.20 x 1.20 meters. Brightly Kitchen size is 3.25 x 2.70 meter, it is clean and beautiful. Finally, Wash and Dry is in the kitchen. The most important of the house is an exit door from the kitchen to the back yard.

The Bedroom 1 size is 3.00 x 3.30 meters with a queen size bed and big closet. Bedroom 2 is kid room 2.20 x 3.30 meters with bunk bed support two kid, also have closet in front of the door.


House Short Description:

-Car Parking and garden

-Living room

-Dining room

-Kitchen

-2 Bedrooms, 1 bathroom

-Cabinet Storage

-washing room

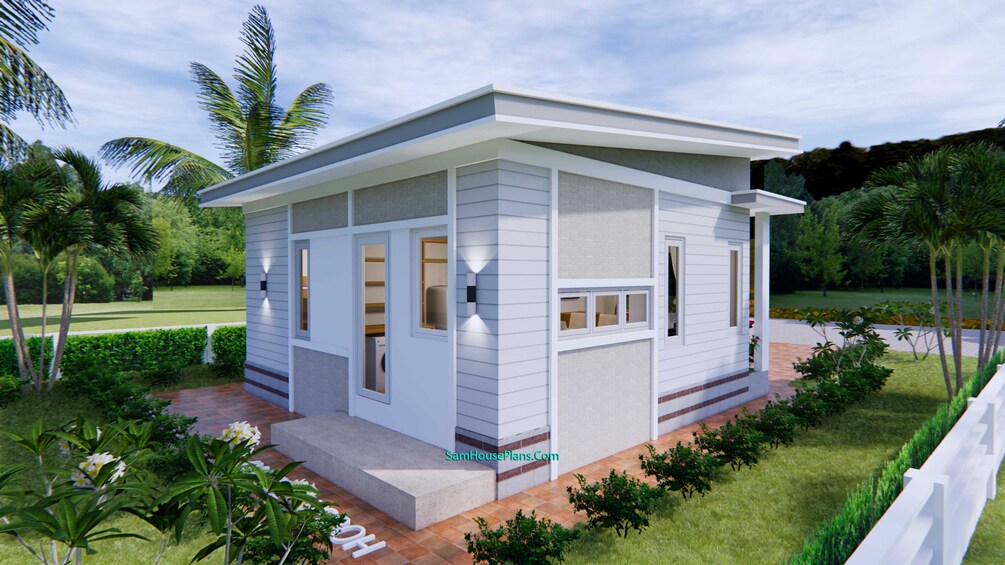

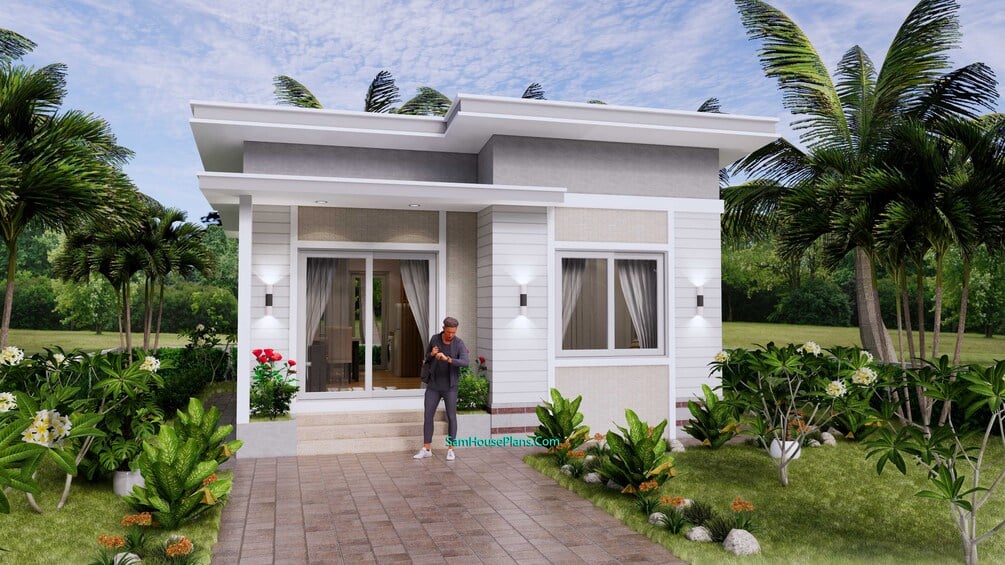

Exterior 23x23 Feet Tiny House:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

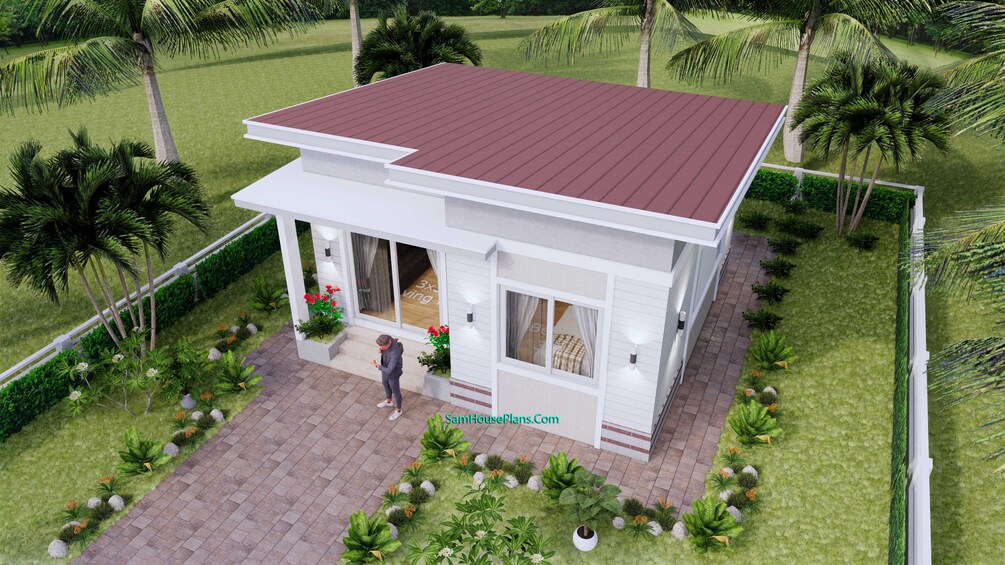

The Roof Tile:

Finally, The Shed roof type is made from Cement tile that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

Included Autocad and Sketchup Files

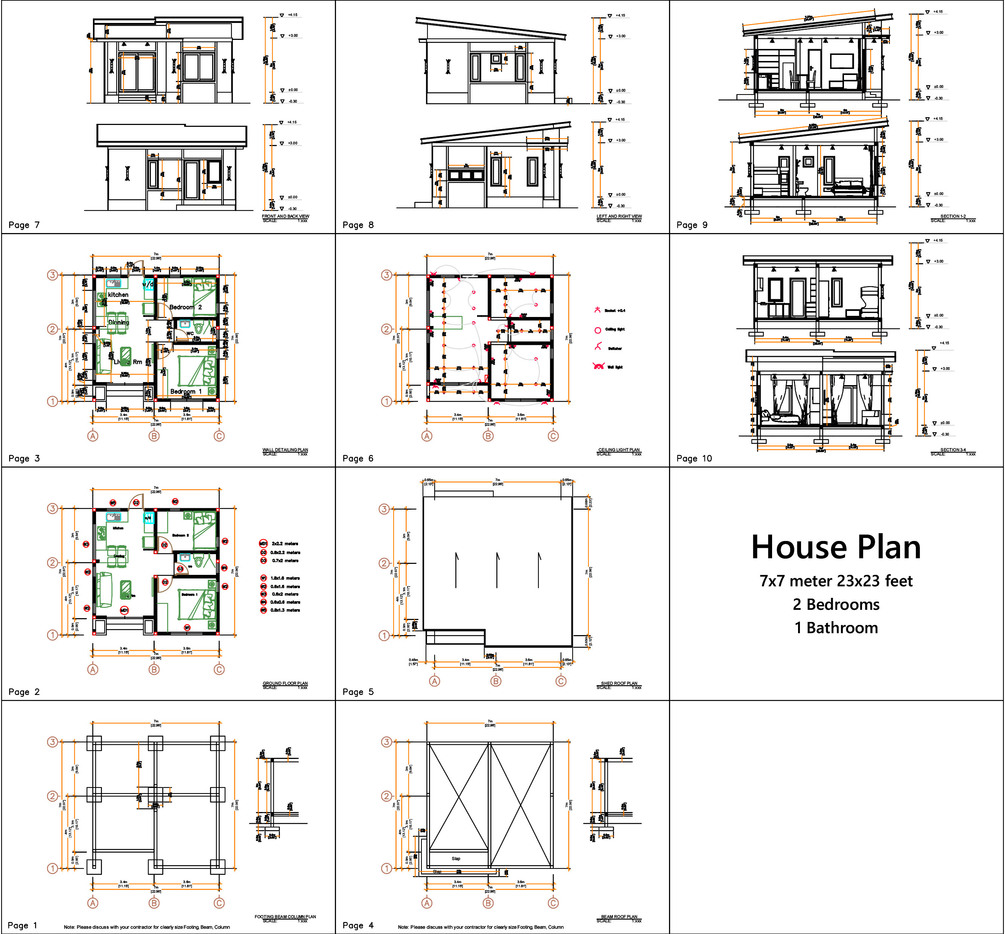

PLANS INCLUDE:

Footing, Beam, Column Location plan PDF plan

Exterior / Interior wall Dimension Plan PDF plan

Roof Beam Plan PDF plan

Roof Plan PDF plan

Elevations plans PDF plan

Ceiling light location plan PDF plan

4 Cross Section plans PDF plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Contact for resize this house plan.

DISCLAIMER:

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.


Add to cart

You'll get Full PDF Plans, AutoCad, and Sketcup files.
