27x40 Small House Plan 2 Beds 8x12M PDF Full Plans

2 ratings

27x40 Small House Plan 2 Beds 8x12M PDF Full Plans. House Plan with 96 sqm floor area PDF Plans. This house is perfect for small land size 10x20M.

27x40 Small House Plan Floor Plans Has:

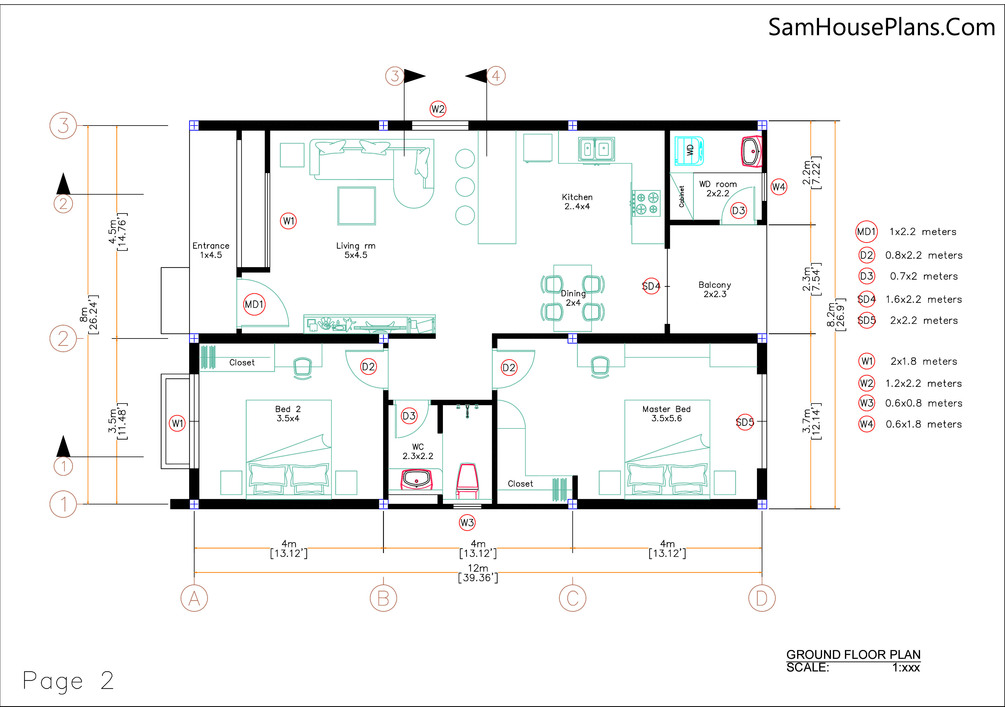

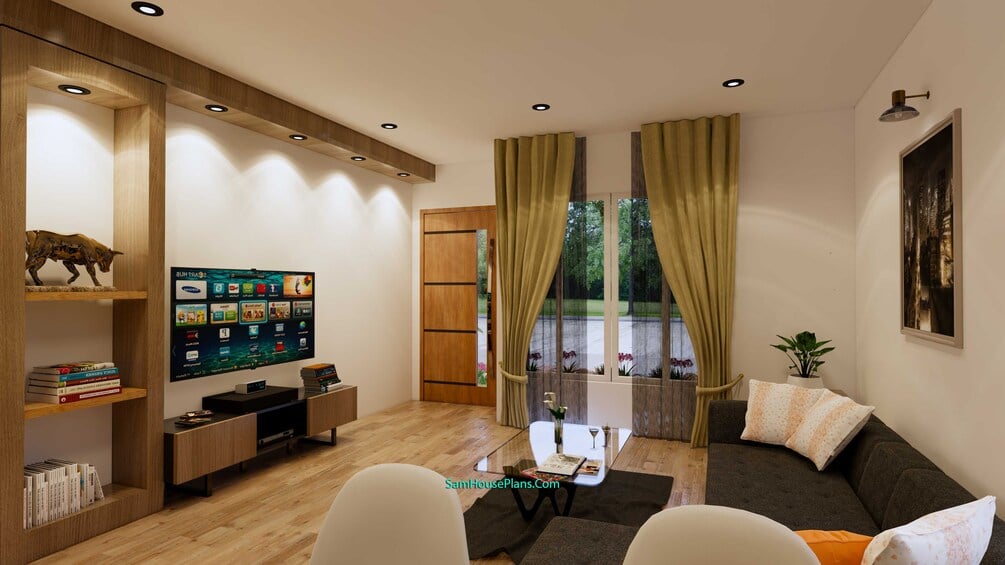

Firstly,  car Parking is at the Out side of the house. A nice Terrace entrance in front of the house 1x4.5 meters. When we are going from front door, a small Living room 5x4.5 meter is very perfect for this house it is nice and modern, dining 2x4 meter, it is clean and beautiful. Brightly Kitchen 2.4x4 meter, wash and dry room 2x2.2 meter, exit door to balcony 2x2.3 meter. A multi Bathroom size 2.3x2.2 meters.

The Master bedroom size is 3.5x5.6 meters, it have a big glasses door to balcony with a king bed size 1.8x2 meter, Makeup desk and closet. Bedroom 2 3.5x4 meter.


House Short Description:

-Car Parking and garden

-Living room

-Dining room

-Kitchen

-2 Bedrooms, 1 bathroom

-Cabinet Storage

-washing room

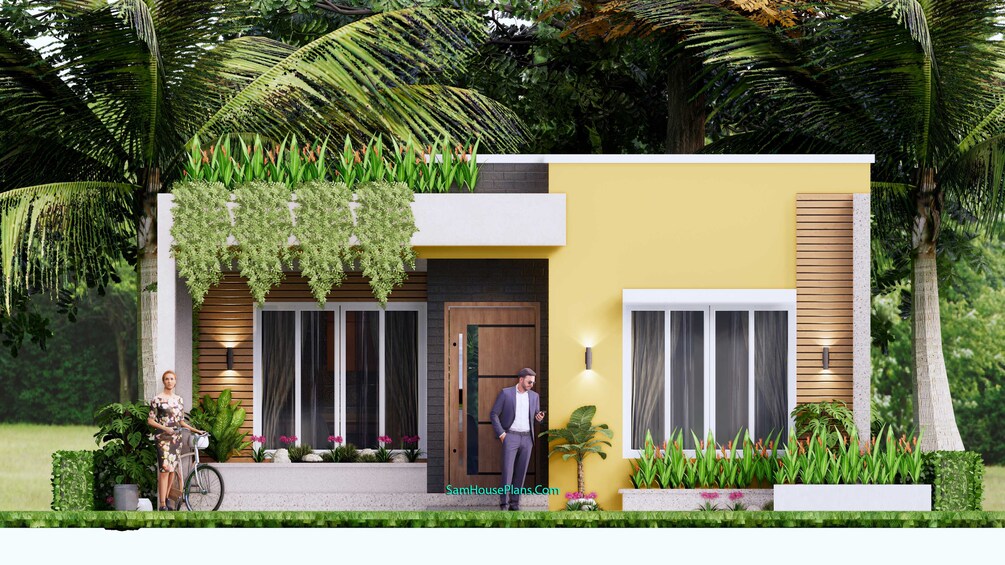

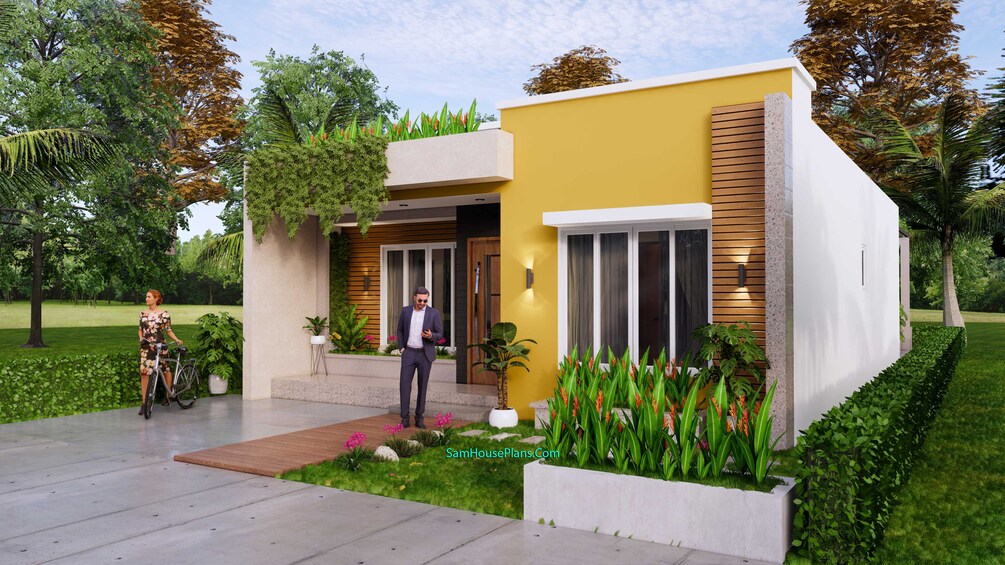

Exterior 27x40 Small House Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.


The Roof Tile:

Finally, The terrace roof type is made from Cement concrete that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

Included Autocad and Sketchup Files

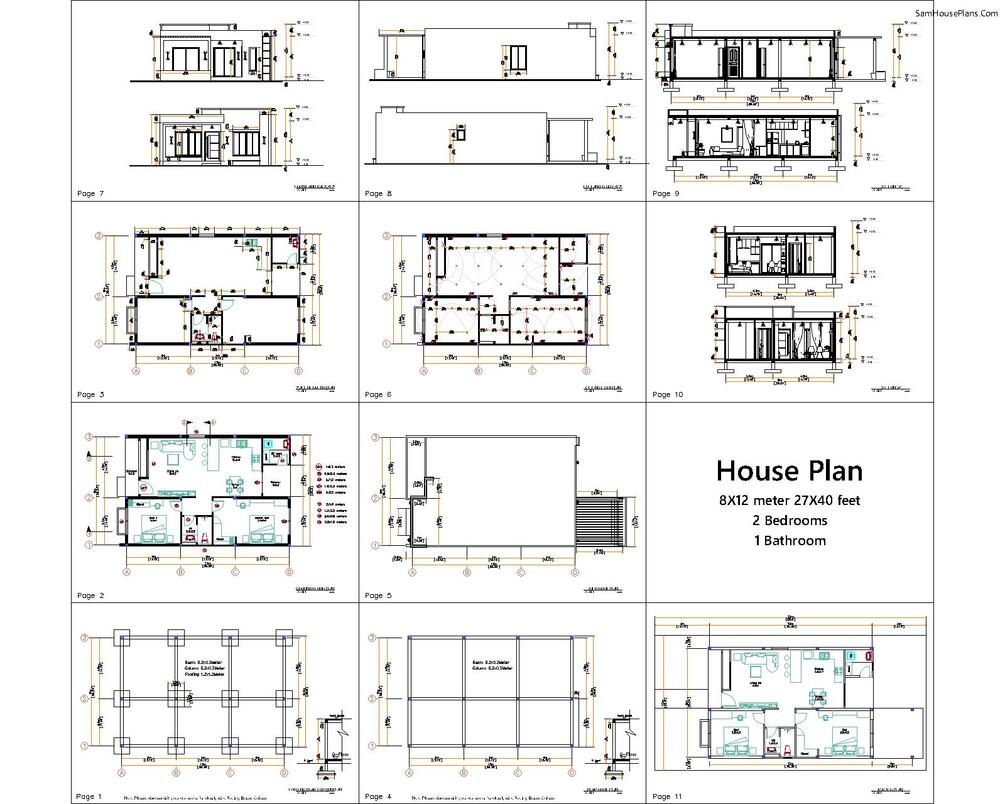

PLANS INCLUDE:

Footing, Beam, Column Location plan PDF plan

Exterior / Interior wall Dimension Plan PDF plan

Roof Beam Plan PDF plan

Roof Plan PDF plan

Elevations plans PDF plan

Ceiling light location plan PDF plan

4 Cross Section plans PDF plan


You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any

problems with your order.


Add to cart

You'll get Full PDF Plans, AutoCad, and Sketcup files.

Select $39 to get full plans
