40x36 feet House design plans 12x11 m with 4 Bedrooms Pdf Full Plan

40x36 feet House design plans 12x11 m with 4 Bedrooms Pdf Full Plans. This house is perfect for medium family with 4 bedroom 3 bathrooms.

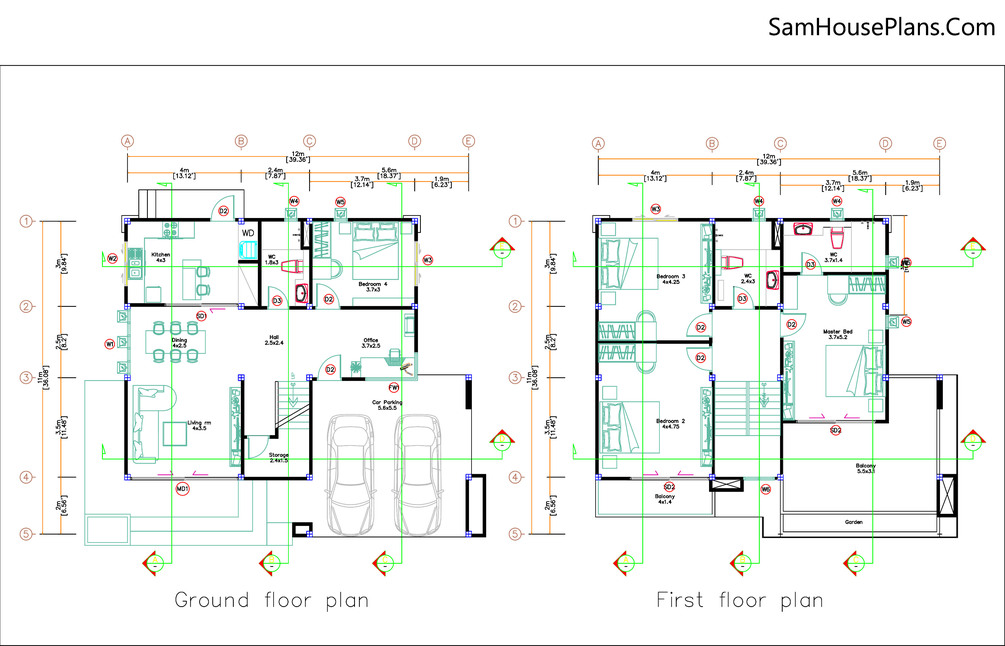

40x36 feet House design Floor Plans Has:

Firstly,  2 cars Parking is at the right side of the house 5.6x5.5 meter. A nice Terrace entrance in front of the house 6.4x2 meter. When we are going from front door, a Living 4x3.5 meter is very perfect for this house it is nice and modern. Big nice hall 2.5x2.4 meter, Dining area 4x2.5 meter. Brightly Kitchen 4x3 meter, it is clean and beautiful. A multi Bathroom size 1.8x3 meters. Washing machine is in the kitchen 0.6x3 meter. Electrical room and Storage are under the stair. Bedroom 4 size is 3.7x3 meter, Office area 3.7x2.5 meter.

At first floor, big hall have 2.4x2.5 meter. Master Bedroom size is 3.7x5.2 meters, it have a big glass sliding door to balcony 5.5x3.1 meter with a king size bed, Makeup desk and closet, bathroom 3.7x1.4 meters. Bedroom 2 size 4x4.75 meter, Bedroom 3 size 4x4.25 meter with balcony 4x1.4 meter, multi Bathroom 2.4x3 meters.

House Short Description:

-2 Cars Parking

-Living room, big hall with balcony

-Dining room, office area

-Kitchen

-4 Bedrooms, 3 bathrooms

-Storage

-washing room

Exterior 40x36 feet House design:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Roof Tile:

Finally, The hip roof type is made from Cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

Included Autocad and Sketchup Files

PLANS INCLUDE:

Footing, Beam, Column Location plan PDF plan

Exterior / Interior wall Dimension Plan PDF plan

Roof Beam Plan PDF plan

Roof Plan PDF plan

Elevations plans PDF plan

5 Cross Section plans PDF plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any

problems with your order.

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN
