House design 33x43 Feet 10x13 m 3 Bedrooms PDF Floor plan

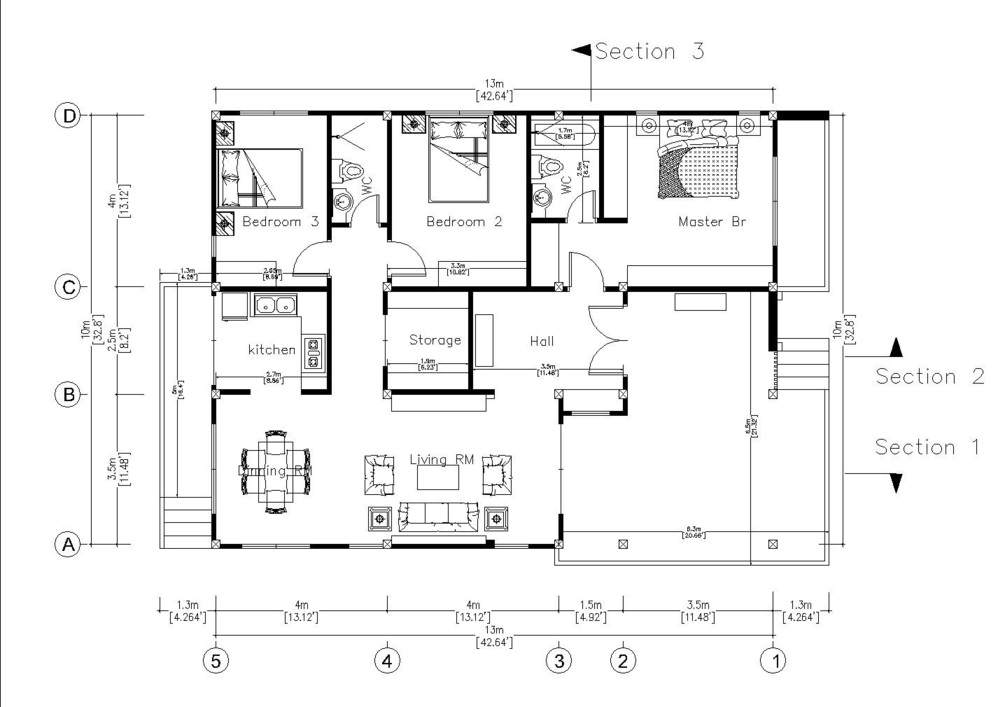

House design 33x43 Ground Floor Plans Has:
Firstly, The car Parking is out side of the house. A nice Terrace entrance in front of the house 6.5x6.3 meter. When we are going from front door, hall 2.5x3.5 meter, a small Living 3.5x4 meter. Dining room 3.5x4 meter and the Kitchen 2.5x2.7 meter is very perfect for maximum 6 people for this house it is nice and modern. Back terrace 1.3x5 meter, it is clean and beautiful. A multi Bathroom size 1.3x2.5 meters. Storage 2.5x1.9 meter.
The Master Bedroom size is 4x4 meters, it have a big glass window with a King size bed, Makeup desk and closet and attached Bathroom size 1.7x2.5 meters. Bedrooms 2 size 3.3x4 meter, bedroom 3 size 4x2.7 meter.
The Roof Tile:
Finally, The Terrace roof type is made from concrete (Or any tiles available in your country) that cover above Gypsum board ceiling . It is make the house look simple and modern.

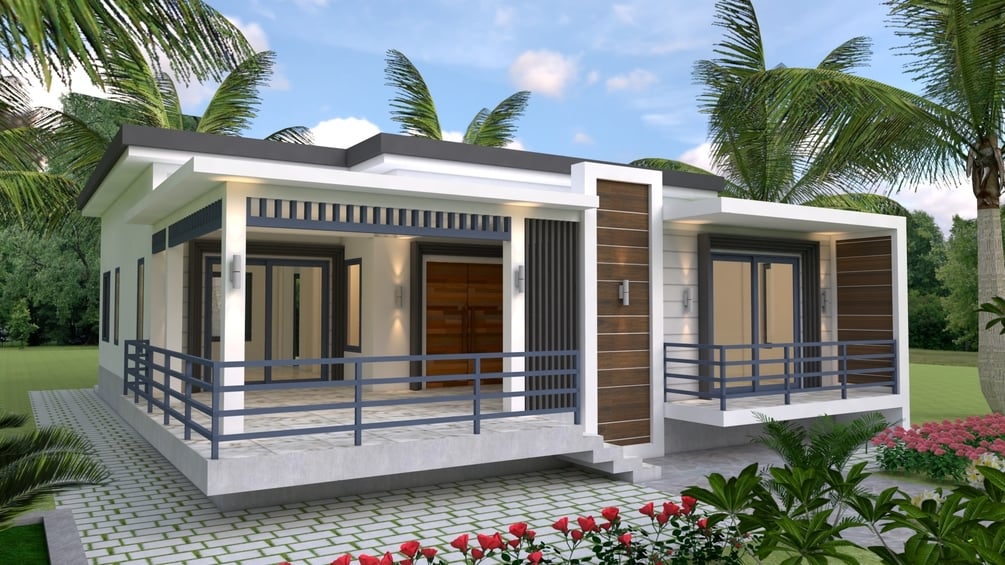

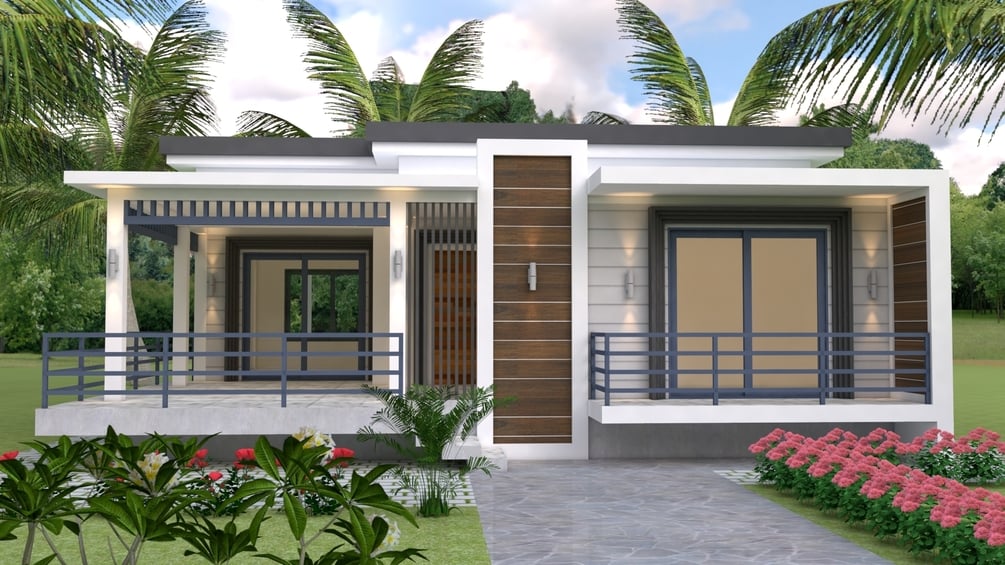

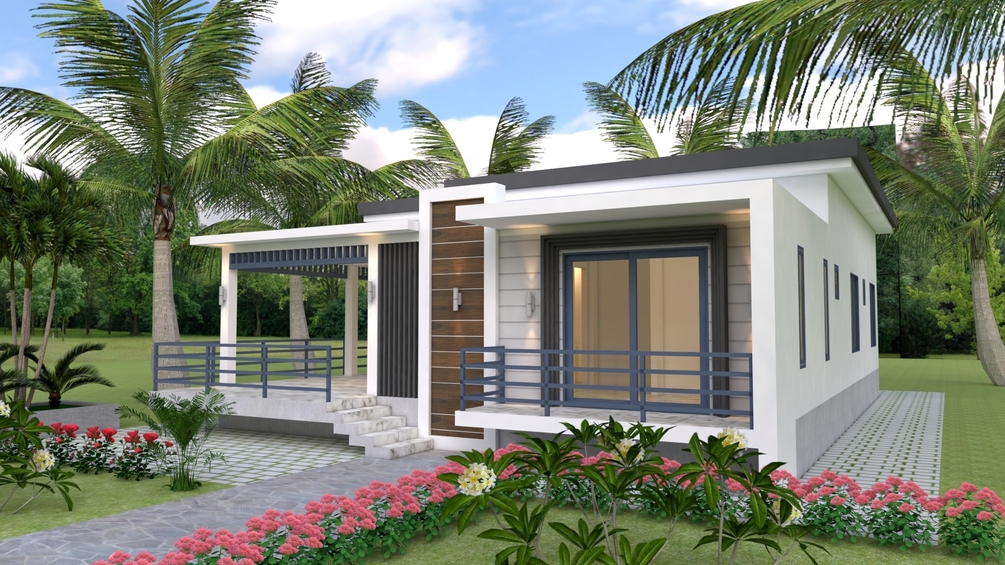

Exterior House design 33x43:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
House Short Description:
-One Car Parking and garden
-3 Bedrooms, 2 bathrooms
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
Buy this house plan:
This is a PDF Plan available for Instant Download.
3-Bedrooms 2-Baths home with mini washer/dryer room.
Building size: 10 meter wide, 13 meter deep 33x43 Feet
Roof Type: Terrace roof (cement concrete or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.

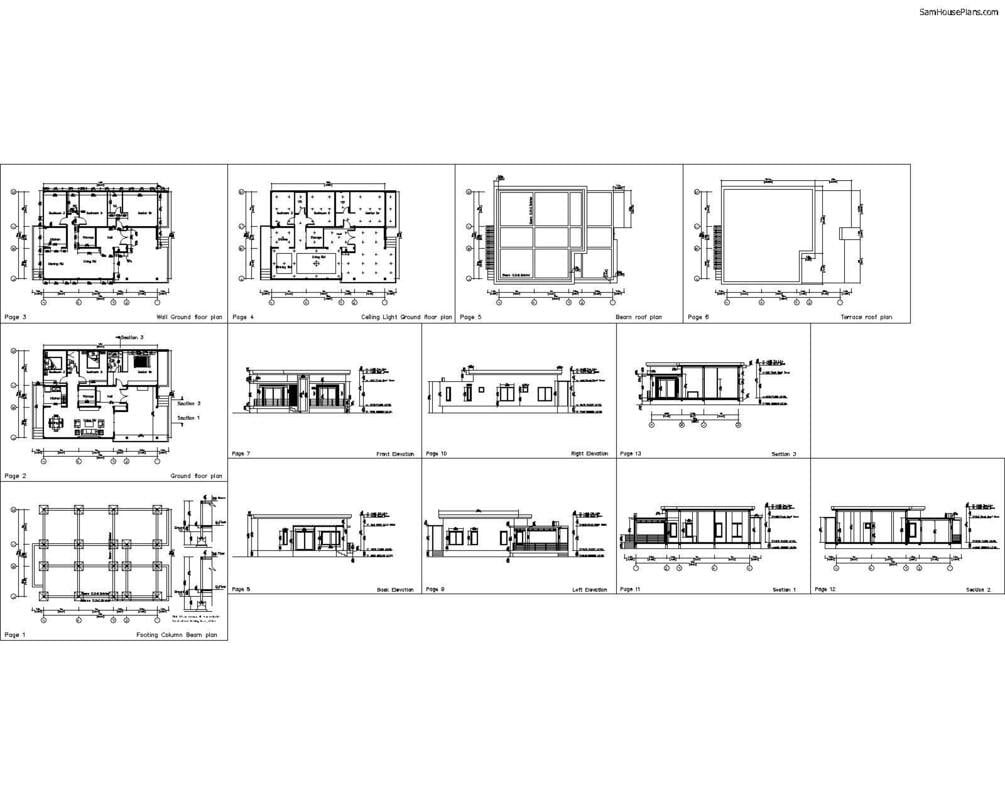

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
1 Cross Section plans
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I'm unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Delivery Instant Download
Your files will be available to download once payment is confirmed.
I don't accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
You'll get PDF, AutoCad, and Sketcup files.
- You'll get PDF, AutoCad, and Sketcup files.
- Instant download29$
