16x50 Home Design Plan 5x15 Meter Duplex House 3 Bedrooms PDF Full Plans

16x50 Home Design Plan 5x15 Meter Duplex House 3 Bedrooms PDF Full Plans. This house is perfect for medium family with 3 bedrooms, and 4 bathrooms.

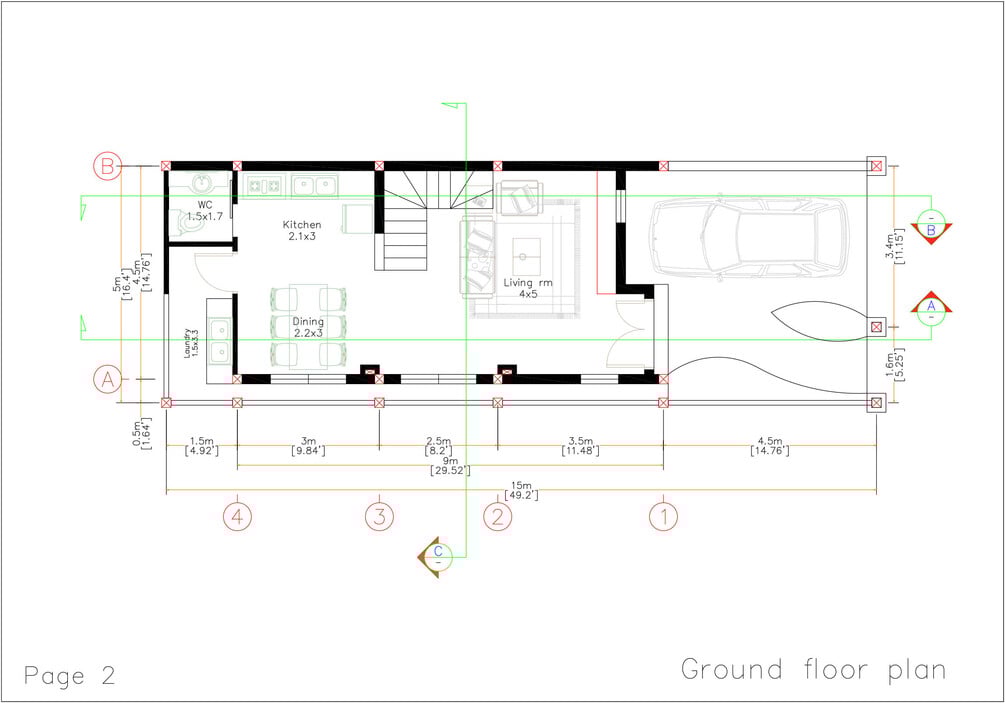

16x50 Home Design Plan Floor Plans Has:

House Short Description:

-Cars Parking Out side the house

-Living room

-Dining room

-Kitchen, wash and dry area

-3 Bedrooms,  and 3 bathrooms

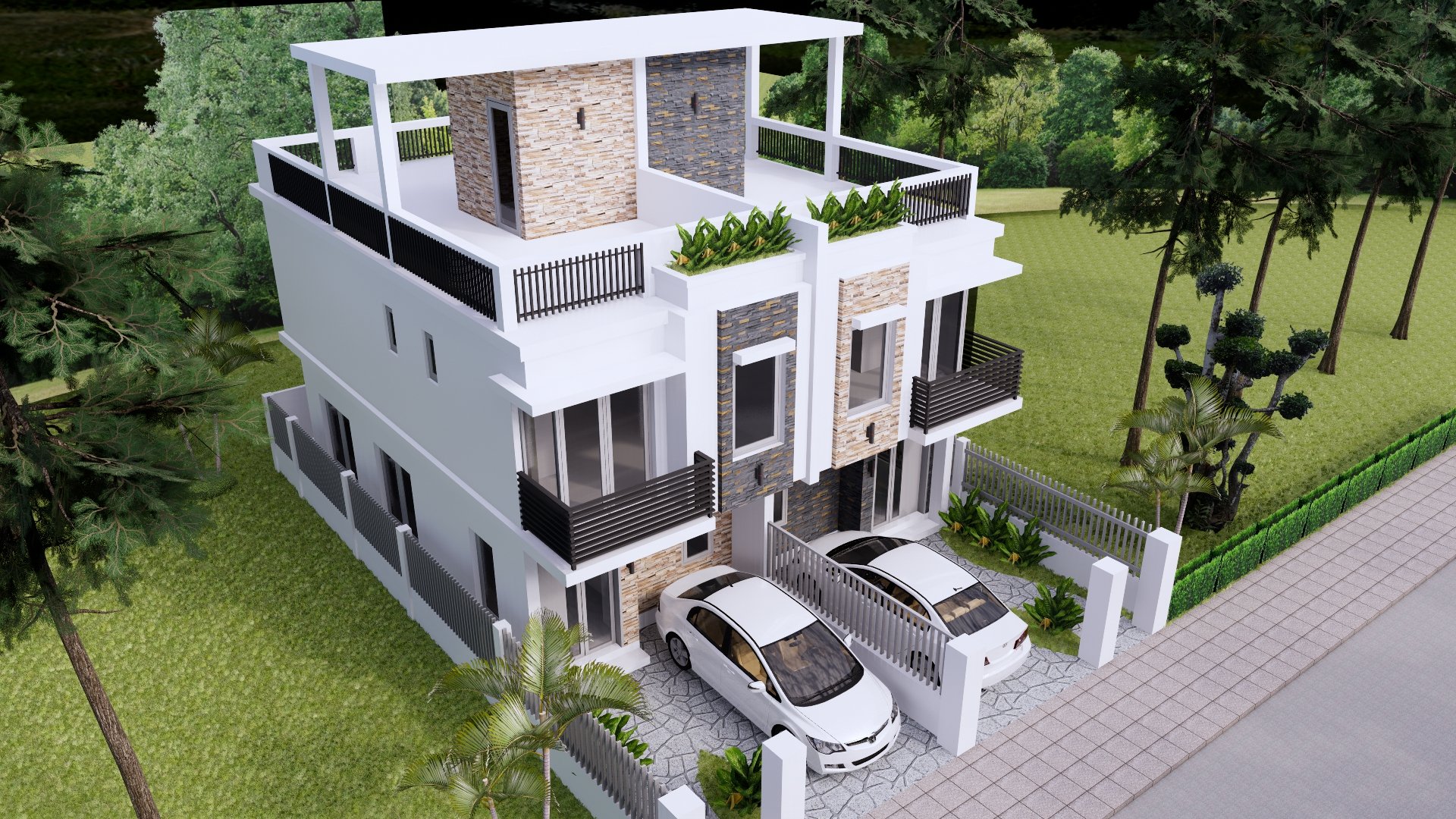

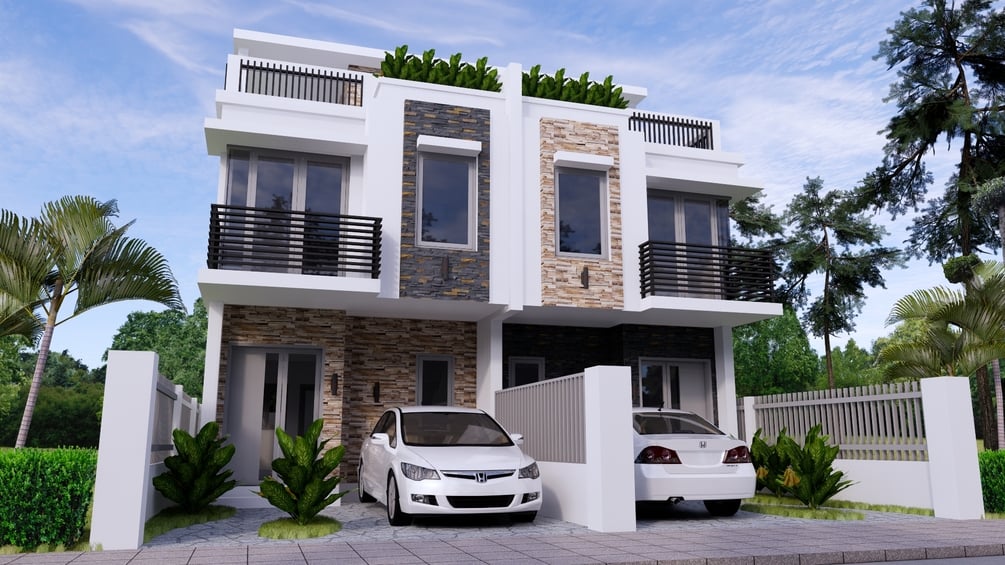

Exterior 16x50 Home Design Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

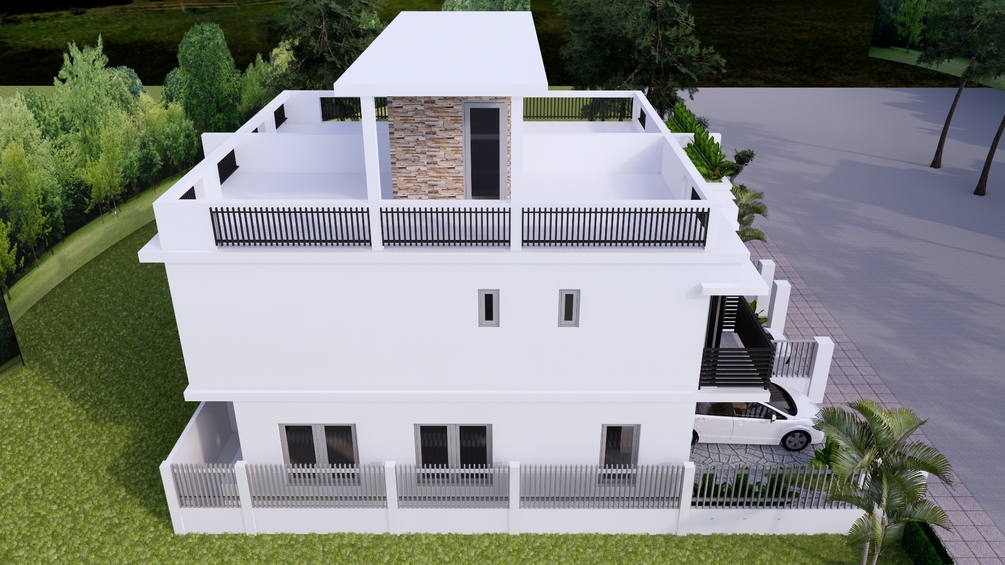

The Roof Tile:

Finally, The terrace roof type is made from Cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

Included Autocad and Sketchup Files

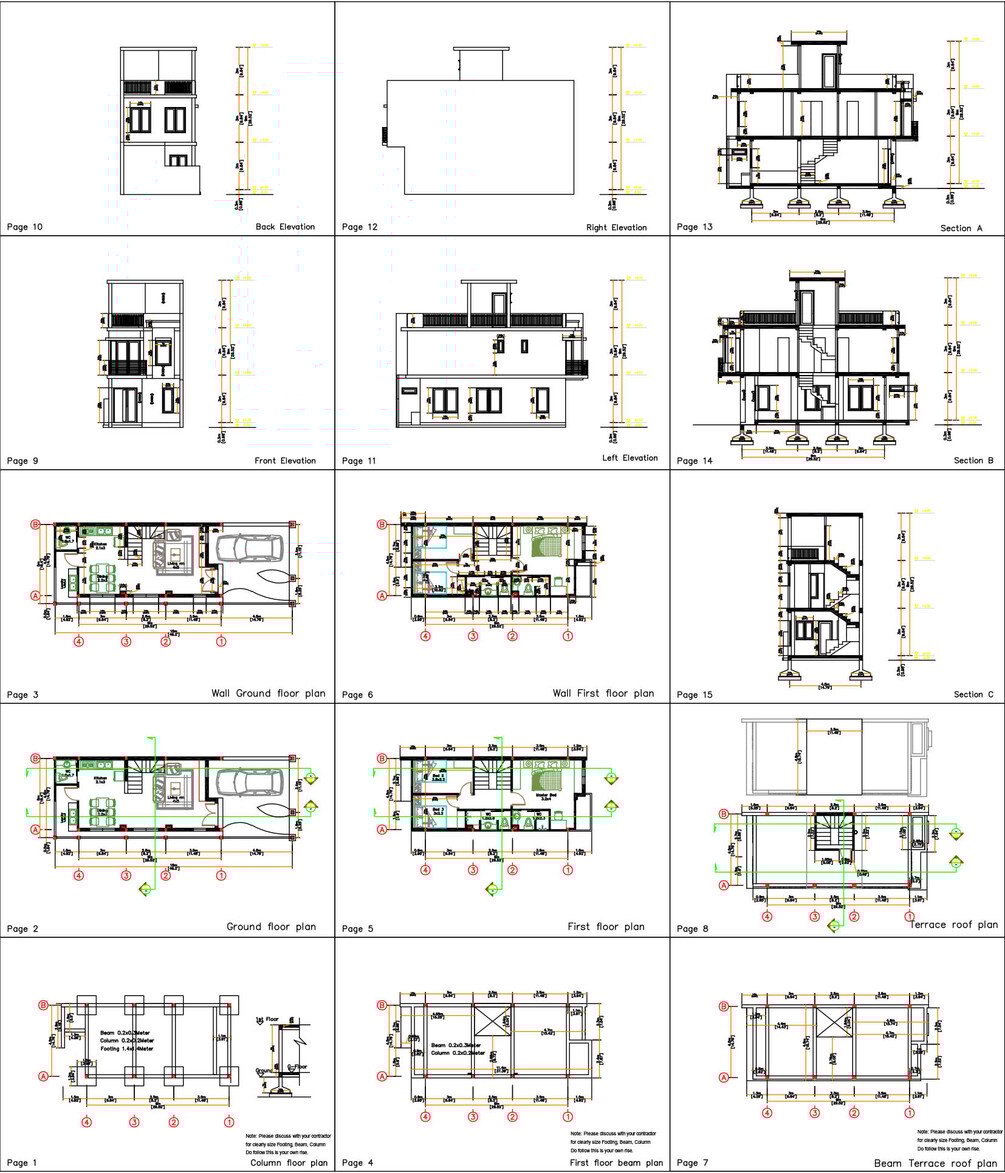

PLANS INCLUDE:

-Footing, Beam, Column Location plan PDF plan

-Exterior / Interior wall Dimension Plan PDF plan

-Roof Beam Plan PDF plan

-Roof Plan PDF plan

-Elevations plans PDF plan

-Cross Section plans PDF plan
-Ceiling light, socket, switcher, aircons location plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN
