House Plans 7x15m with 5 Bedrooms 3d PDF Full Plans 23x49 Feet

2 ratings
I want this!

House Plans 7x15m with 5 Bedrooms 3d PDF Full Plans 23x49 Feet

Sam House Plans
2 ratings

House Plans 7x15m with 5 Bedrooms 3d PDF Full Plans 23x49 Feet. This house is perfect for small land size.

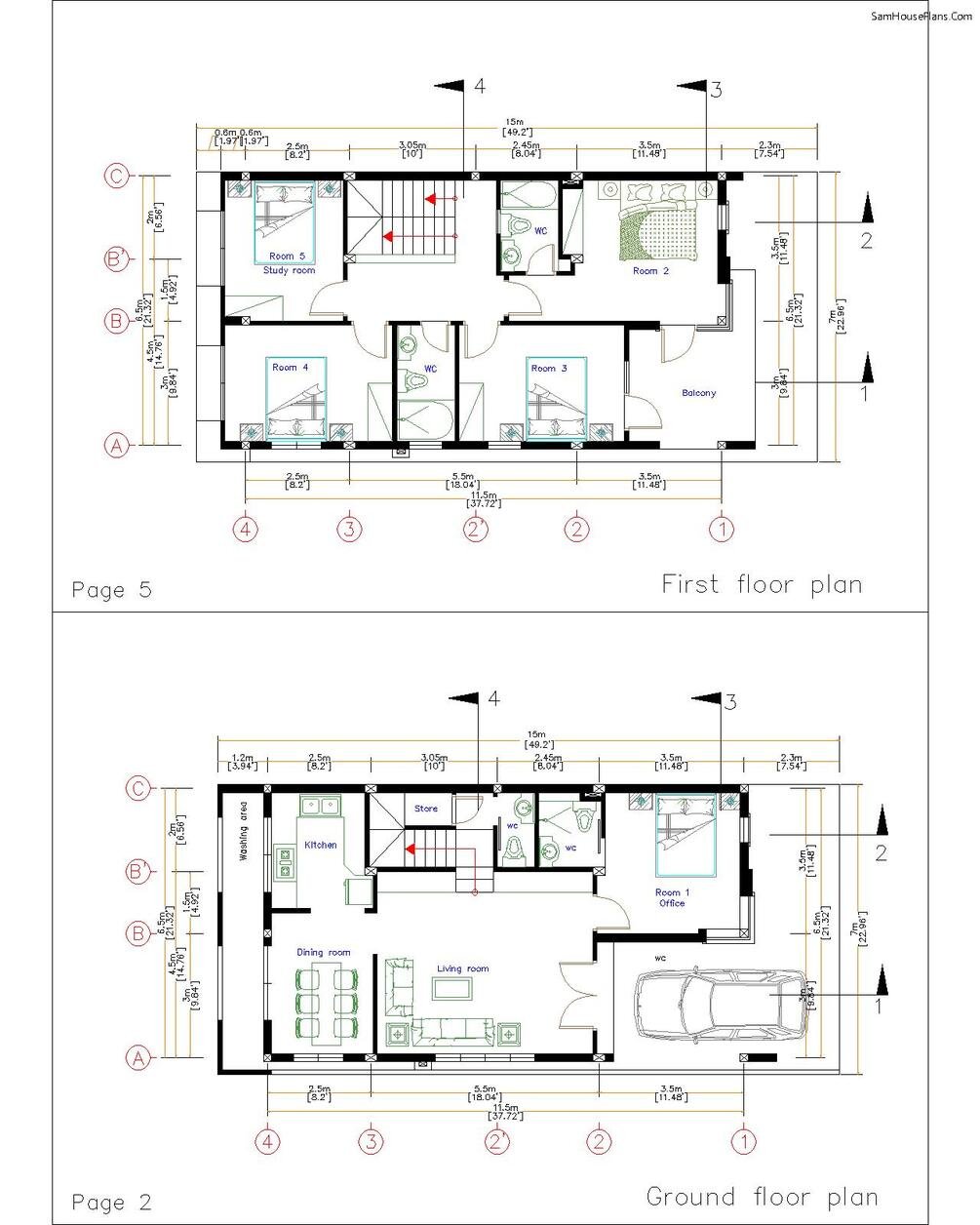

House Plans 7x15m Ground Floor Plans Has:

Firstly,  1 car Parking is at the left side of the house 3.1x5.45 meters. A nice Terrace entrance in front of the house 0.4x3.1 meter. When we are going from front door, a Living 4.4x5.2meter is very perfect for this house it is nice and modern. Brightly Kitchen 2.25x2.8 meter, dining area 3.4x2.45 meter, it is clean and beautiful. A multi Bathroom size 1.8x0.9 meters. Storage is under the stair. Washing area at the back of the house. Bedroom 1 size is 3.4x3.25 meter with bathroom1.8x1.5 meter.

At first floor, hall 1.5x3.6 meter, Master Bedroom 2 size is 3.3x3.4 meters, it have a big glass sliding window with a queen size bed, Makeup desk and closet , attached with bathroom 1.8x1.4 meter. Bedroom 3 size 3x4 meter, bedroom 3 size 2.8x4 meters, bedroom 4 size 2.8x4 meters, bedroom 5 size 3.4x2.9 meters. Bathroom 2.8x1.4 meters.

Big terrace at second floor


House Short Description:

-1 Car Parking and garden

-Living room,

-Dining room

-Kitchen

-5 Bedrooms, 4 bathrooms

-Storage

-washing room


Exterior House Plans 7x15m:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.


The Roof Tile:

Finally, The terrace roof type is made from Concrete Cement that cover above Gypsum board ceiling . It is make the house look simple and modern.


Delivery Instant Download

Included Autocad and Sketchup Files

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Ceiling light location plan

4 Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any

problems with your order.


I want this!

You'll get Full PDF Plans, AutoCad, and Sketcup files.
