Tiny Home Designs 23x20 Ft One Bed 7x6 M Shed Roof

Tiny Home Designs 23x20 Ground Floor Plans Has:

This small family home is perfect for single family. A nice Terrace entrance in front of the house size 13.8x5.9 Ft (4.2x1.8m). When we are going from front door, a small Living 9.2x10.5 Ft (2.8x3.2m) is very perfect for maximum 2 people for this house it is nice and modern. Brightly Kitchen with dining table 9.2x8.5 Ft (2.8x2.6m), it is clean and beautiful. A multi Bathroom size 4.9x8.2 Ft (1.5x2.5m). The washing machine is in the bathroom.

The Master Bedroom size is 9.9x10.8 Ft (3x3.3m), it have a big glass window with a queen size bed, Makeup desk and closet.

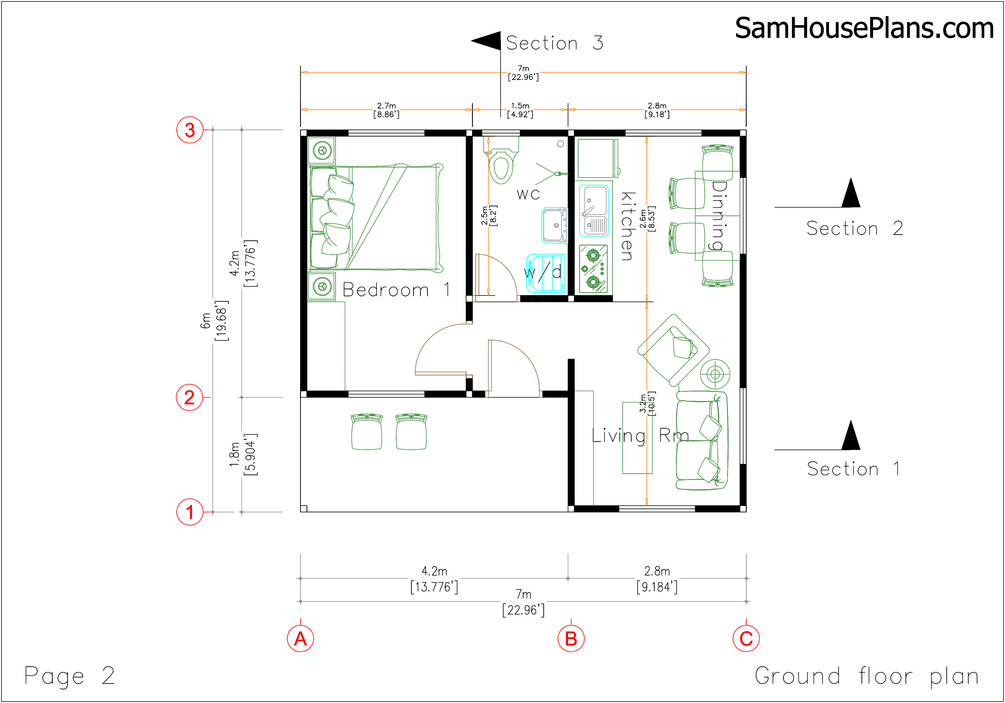

Floor plan Detail Tiny Home Designs 23x20:

House Short Description:

-No Car Parking

-Entrance Terrace 13.8x5.9 Ft (4.2x1.8m)

-Living room 9.2x10.5 Ft (2.8x3.2m)

-Dining room and Kitchen 9.2x8.5 Ft (2.8x2.6m)

-1 Bedroom 8.9x13.8 Ft (2.7x4.2m)

-1 bathroom 4.9x8.2 Ft (1.5x2.5m)

-Washing machine in bathroom

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The Roof Tile:

Finally, The Shed roof type is made from Cement tiles (or your local roof tiles) that cover above Gypsum board ceiling . It make the house look clean and modern.

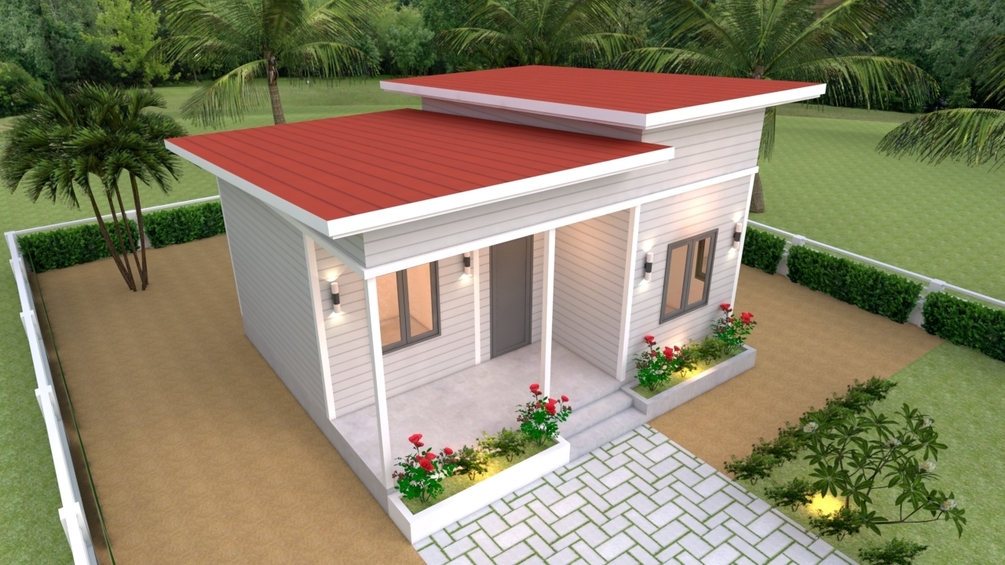

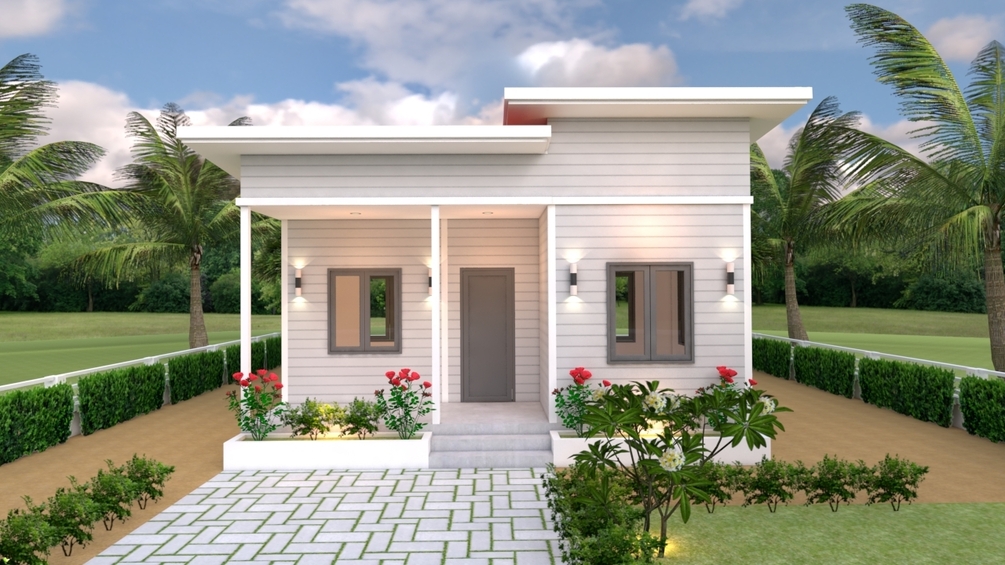

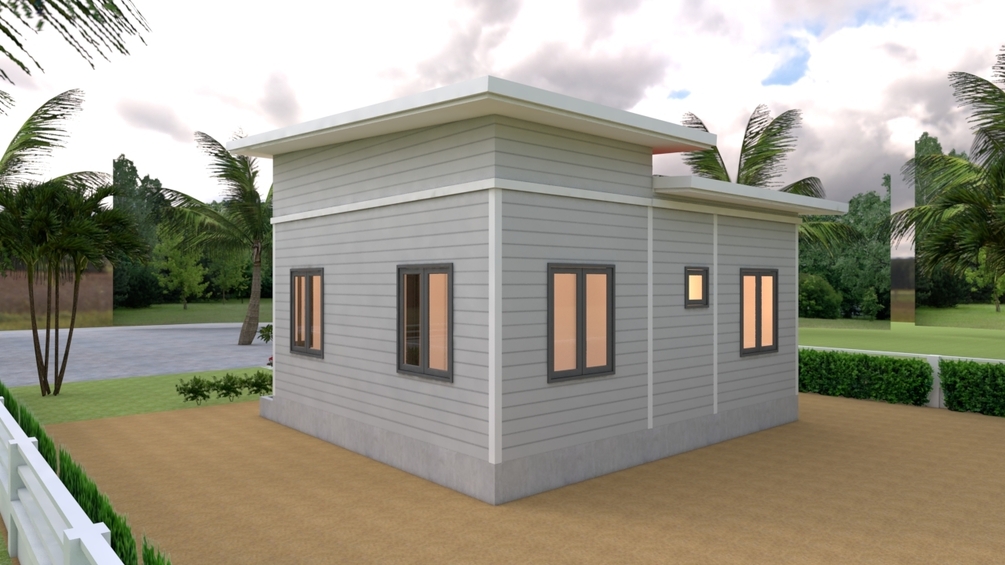

Exterior Tiny Home Designs 23x20:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Buy this house plan:

This is a PDF Plan available for Instant Download.

1-Bedroom 1-Bath home with mini washer/dryer room.

Building size: 23 feet wide, 20 feet deep

Roof Type: Gable roof (zine, cement tile or other supported type)

Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

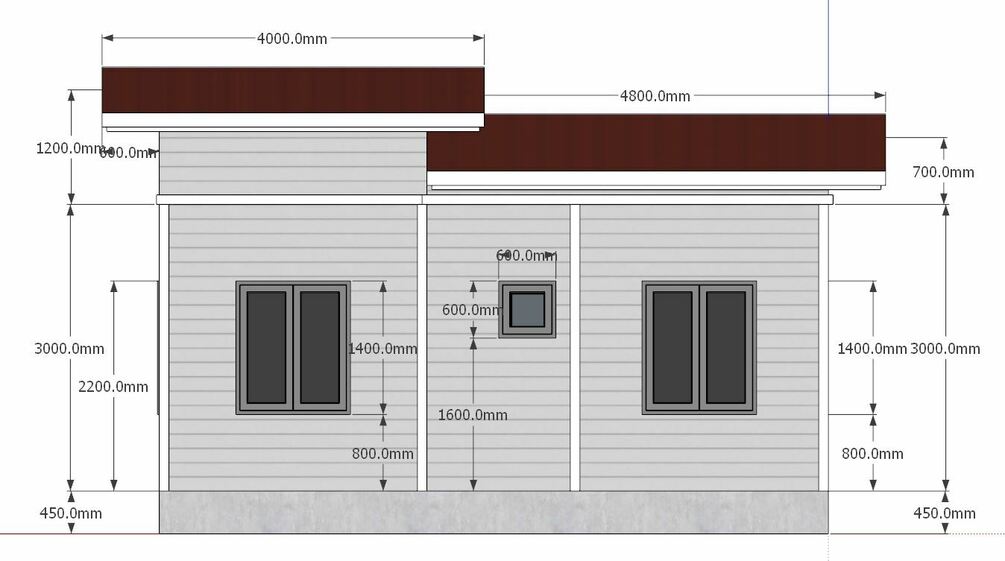

Elevations plans

3 Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I'm unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.


  • You'll get PDF, AutoCad, and Sketcup files.

  • Instant download
    29$
  • You'll get PDF, AutoCad, and Sketcup files.
  • Instant download29$
