House Design Plans 16x12 Meter 52x39 Feet 3 Bedrooms PDF Plan

House Design Plans 16x12 Meter 52x39 Feet 3 Bedrooms Has:

Ground floor, two cars Parking is at the left side of the house. A nice Terrace entrance in front of the house 3x4 meter. When we are going from front door, a Living 6.4x4 meter is very perfect for this house it is nice and modern. Brightly dining area 4.2x2 meter. Kitchen 2x4.2 meter, it is clean and beautiful. A multi Bathroom size 2.5x1.6 meter. The washing machine is out side the house 2x4 meter, Bedroom 1 size is 4x3.1 meter with bathroom 1.4x2.7 meter, Bedroom 2 size is 4x3.3 meter with bathroom 1.4x2.7 meter, and Bedroom 3 size is 4x3.6 meter.

House Short Description:

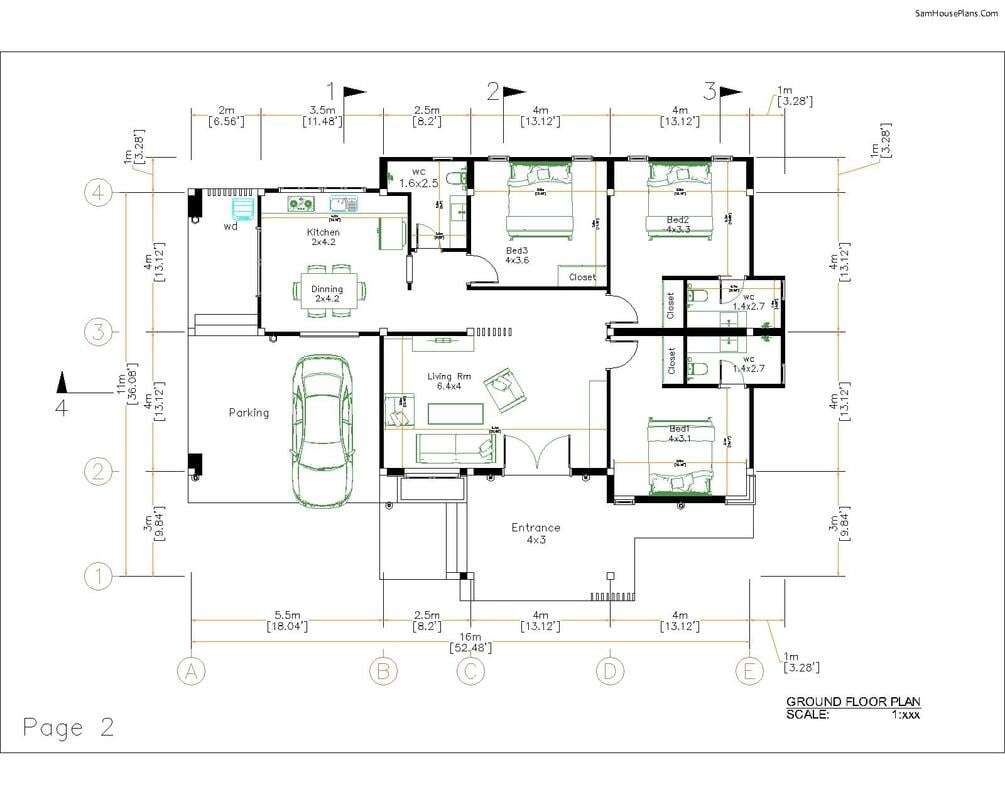

Ground floor:

-1 Car Parking

-Living room 6.4x4

-Dining room 4.2x2

-Kitchen 2x4.2

-Bedroom 1: 4x3.2 bathroom 1.4x2.7

-Bedroom 2: 4x3.3 bathroom 1.4x2.7

-Bedroom 3: 4x3.6

-Bathroom 2.5x1.6

-washing machine 1.3x2m

First floor:

Shed roof

Exterior House Design Plans 8x18:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Roof Tile:

Finally, The shed roof type is made from Cement tile or zine tile that cover above Gypsum board ceiling . It is make the house look simple and modern.

Delivery Instant Download

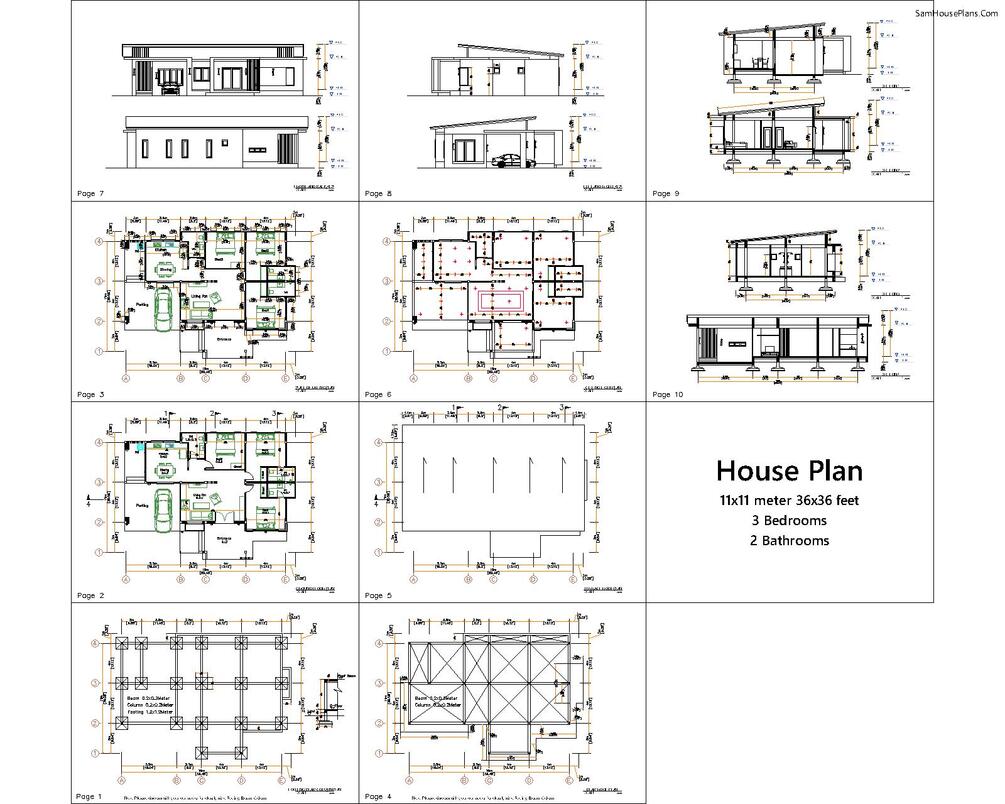

Included Autocad and Sketchup Files


Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Ceiling light location plan

4 Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.


Unfortunately I'm unable to do custom plans at this time.


These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don't accept returns, exchanges, or cancellations. But please contact me if you have any

problems with your order.

I want this!

You'll get Full PDF Plans, AutoCad, and Sketcup files.

Select $19 to get full plans
